UDI Park
D5 Přehýšov

Tailor-made solutions

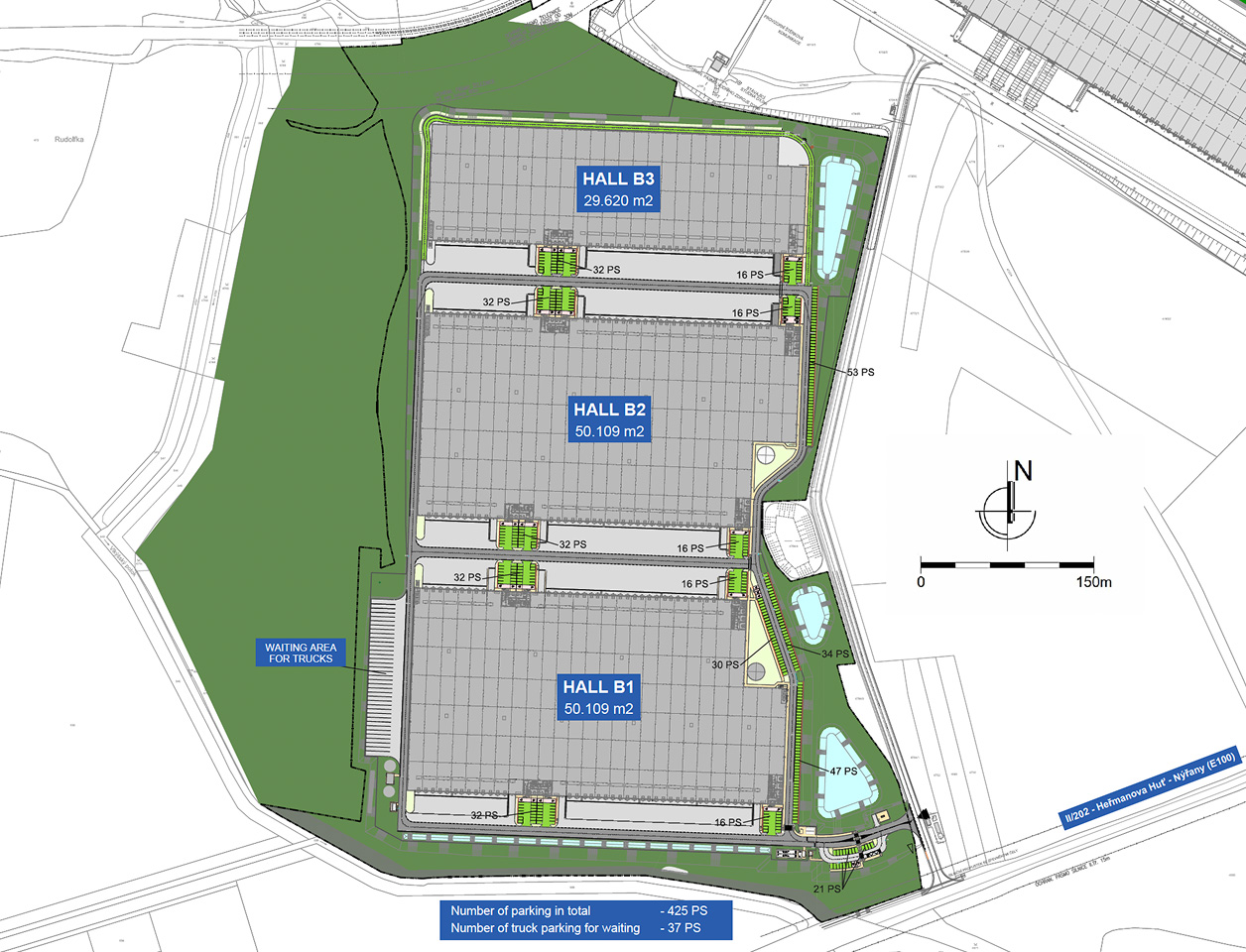

Turnkey delivery with possible adaptation of the internal layout to meet the tenant’s requirements. The building permit for all 3 halls was issued in 2021. Division of the halls possible as needed by the tenant.

Hall B1 – executed as shell and core, including floors, without administrative areas built in, completion of construction works as per the tenant’s requirements possible within 4 to 6 months.

Hall B2 – construction may commence as per the tenant’s requirements.

Hall B3 – the shell of the hall, including the foundation, is already executed, completion of construction works as per the tenant’s requirements possible within 7 months.

Industrial floor – unique in Czechia

The halls are designed with smooth, large-format concrete slabs with hardening, which facilitates smooth operation and maintenance – large expansion units of up to 36x48 m are used, minimizing the number of expansion joints, which tend to be problem areas in standard halls when trucks pass over them, during cleaning, etc.

Due to special admixtures and technological procedures during execution, the gaps of the expansion joints were minimized up to 3 mm, which is significantly less than on conventional floors, where the gaps are even greater than 1 cm. The floors, we build, have increased flexibility for rack placement and improve the operation of forklifts and floor cleaning.

The floor loading is 7 t (and locally up to 10 tons). Our halls are the first in the Czech Republic to use such technology.

Sustainability

• Breeam Very Good certification (with the possibility of Breeam Excellent)
• Retention tanks to contain rainwater
• Rainwater for sanitaries and irrigation
• Waste water treatmant plant
• Preparation for rooftop photovoltaic panels (up to 4.5 MW per hall)

Superstructure

• Reinforced precast concrete structure with 12x24 m grid
• Thermally insulated precast concrete perimeter plinth for increased durability
• Minimum clear height in the hall 12 m
• Precast built-in parts

Built-in office parts

• 3 stores for offices, locker rooms, toilets, technical rooms, etc. (possibility of adaption)
• Aluminium entrance doors and windows
• Air conditioning and mechanical ventilation
• Mineral fibre suspended ceilings

Roof

• Combined roof insulation 23 cm thick (2x 30 mm mineral wool + 2x EPS 150 in thickness 80 and 90 mm)
• PVC membrane 1.8 mm, suitable for PV
• Siphonic roof drainage
• Roof skylights for natural lighting (min. 1.9 % of the area)

Loading docks

• Loading docks incl. adjustable dock levellers with shelters
• Guide rails and bumpers to prevent damage to the dock
• Drive-in ramps

Paved areas

• Sized for trucks 16.5 m long
• Asphalt roads
• Concrete handling areas
• Parking spaces for trucks and cars (concrete pavement)
• Green areas and trees

Floors

• Steel-fibre reinforced concrete slabs 20 cm with the load capacity of up to 95 kN/m²
• 36x48 m grid with sin. expansion joints
• Point load up to 80 kN (on baseplate size 15x15 cm)
• Forklift load capacity 70 kN

Installations

• Gas radiant heaters in the hall
• Central heating with radiators and air conditioning in the office built-ins
• Ceiling sprinklers, preparation for in-rack sprinklers
• Energy-saving LED lightning, BMS
• CCTV system, structured cabling

Facades

• Sandwich panels with mineral wool 20 cm (U=0.19 W/m².K)
• Insulated precast concrete facade panels at the loading docks
• Aluminium windows with triple glazing (U=1.0 W/m².K)
